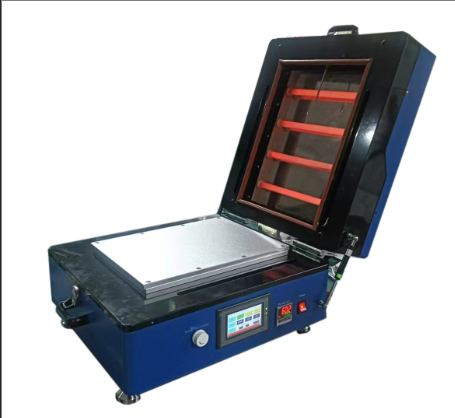

Infrared Coin Cell Battery Electrode Coating Machine For Lab

Power supply : 220V/50Hz

External dimensions : L500mm x W350mm x H320mm

Contact Now

Product Description

Automatic film drying machines are widely used in various high-temperature film research, such as ceramic films, crystal films, battery material films, and special nano films; It can adapt to the development of science and technology for film formation under high temperature conditions in the future
Features:
1.Strong wind circulation drying and heating, digital display temperature control;
2. Flat coating, motor driven scraper coating, stable and adjustable coating speed;
3.The travel can be adjusted through a travel switch between 0 and 250MM;Standard film maker with high coating accuracy and
adjustable coating thickness;
4.The coating speed is adjustable within the range of 0 to 120 MM/s (lithium iron phosphate slurry); Vacuum aluminum plate, which
can quickly place or remove the substrate;
5.Can be used in a glove box, easy to operate, small in size, and can save space; Built-in vacuum pump, substrate adsorption
without deformation and wrinkles;

*Coating method: flat coating, standard with film maker or scraper and other measuring devices
*Coating drive: Motor driven, stable and adjustable coating speed
*Coating width: 150mm, customizable
*Coating speed: 0-120mm/second (lithium iron phosphate slurry);
*The travel can be adjusted through a travel switch between 0 and 250mm;
*Vacuum plate: with vacuum aluminum flat plate;
*Vacuum plate size: L365mm x W200mm x H32mm;
*Adjustable range of scraper: 0.02-3.5mm adjustable;
*Accuracy: ± 3um
*Infrared heating and drying system: room temperature~120 ℃, digital temperature controller, accuracy ± 1 ℃
*One built-in oil-free vacuum pump is included;
*Power supply: 220V/50Hz;
*External dimensions: L500mm x W350mm x H320mm;

Specification

Infrared Coin Cell Battery Electrode Coating Machine For Lab

Coating speed	0～ 120mm/sec (lithium iron phosphate slurry)
Infrared	*Infrared heating and drying system: room temperature~120 ℃, digital temperature controller, accuracy ± 1 ℃
Maximum stroke	250mm
Vacuum plate	Aluminum plate with vacuum
Vacuum plate size	L365mm×W200mm×H32mm
Adjustable range of scraper	0.02 ~ 3.5mmadjustable
Coating drive	Motor driven, stable and adjustable coating speed
Coating method	Flat plate coating, standard with metering devices such as film maker or scraper
Other advantages	Equipped with heating and drying system
Voltage	220V/50Hz
Overall dimensions	L500mm×W350mm×H320mm
